High Precision Stainless Steel Mini S type Load Cell Pull Force Sensor 5N 10N 20N 50N 100N 200N 300N 500N 1000N 2000N

Ask Lasest Price
Brand Name :	OEM
Model Number :	YZC-Load Cell
Certification :	CE
Price :	US $49.99
Payment Terms :	T/T, L/C, Paypal, Payoneer
Supply Ability :	100 /Pieces per Day
Delivery Time :	7-15 days

Add to Cart

Product Details
Company Profile

High Precision Stainless Steel Mini S type Load Cell Pull Force Sensor 5N 10N 20N 50N 100N 200N 300N 500N 1000N 2000N

Features & Applications:

Tension and compression load cell with metal foil strain gauge technology and over load protection, made of stainless steel

Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.
Capacity : 5N, 10N, 20N, 50N, 100N, 200N, 300N,500N, 1000N, 2000N

Parameters:

Capacity	0-5N~2000N	Material	Stainless Steel
Rated output	2.0 ±10% mV/V	Output Impedance	350±3Ω
Non-linearity	0.05 % F.S.	Insulation	>5000MΩ/10VDC
Hysteresis	0.05 % F.S.	Recommended Excitation	2.5-5V
Repeatability	0.05 % F.S.	Excitation max	10V
Creep(30min)	0.05 % F.S.	Compensated Temp Range	-10~60℃
Temp Effect On Output	0.1 % F.S./ 10℃	Operating Temp Range	-20~80℃
Temp Effect On Zero	0.1 % F.S./ 10℃	Safe Load	1.2
Protection Class	IP 65	Ultimate Load Limit	1.5
Input Impedance	350±15Ω	Cable Length	∅2-3 x 3m
Wire Connection	Ex +: Red; Ex -Black; Sig +: Green; Sig -: White (Pressure is positive, pulling is negative);

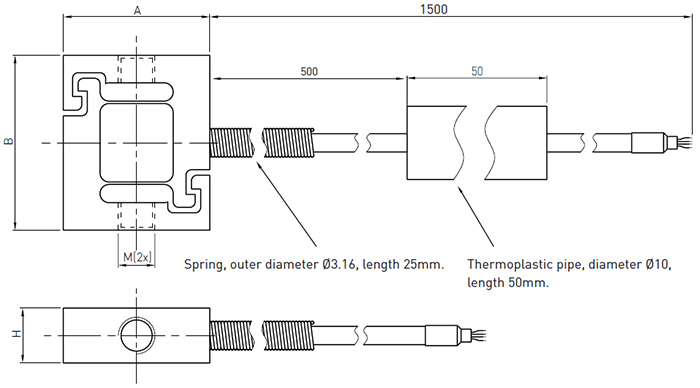

Drawings:

SIZE(mm) CAP (N)	M	H	A	B	Material	Weight
5,10,20	M3	6	16	19.1	Stainless steel	0.1kg
50,100,200,300,500	M4	6	16	19.1
250,300,500,1000,2000	M8	14	26	40
