SM323 Digital I/O Module Compatible PLC S7-300 6ES7 323-1BL00-0AA0 323-1BH01-0AA0

Product Categories

Shenzhen Jetacon Technology Ltd

Contact Now

Name: SM323 Digital IO Module Compatible PLC S7300 6ES7 3231BL000AA0 3231BH010AA0
Brand: Jetacon
Price: 1 USD

Add to Cart

Type Number Available :

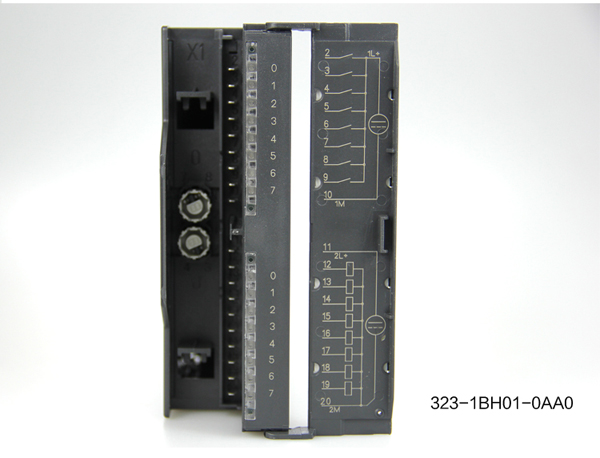

6ES7 323-1BH01-0AA0 8 points input,24VDC; 8 points output,24VDC module
6ES7 323-1BL00-0AA0 16 points input,24VDC;16 points output,24VDC module

Model	SM323
Model	inputs / outputs:16
Product Description	16DI,24VDC/16DO, 24 VDC; Transistor;
Product Description	Optical isolation with high immunity.
Power consumption
·From backplane bus current consumption	80mA
·Power loss	6.5W
Input Feature
Number of digital inputs	16
Input voltage
·Rate value	24V DC
·For ”0” signal	-30~5V DC
·For ”1” signal	13~30V DC
Input current	7mA
Input delay
·From “0” to “1”,Min	1.2~4.8ms
·From “1” to “0”,Min	1.2~4.8ms
Input type	NPN
Connection of 2-wire BERO sensor	Yes
Permissible quiescent current	1.5mA
Output Feature
Number of digital outputs	16
Short-circuit protection	Yes,Electronic
Inductive cutoff voltage	L+(-53V)
Lamp load.Max	5W
Output voltage:for ”1” signal	Min:L+(-53V)
Output current:for ”1” signal	0.5A
Isolation tested for contact
·Between channels and backplane bus	Yes
·Per group between channels	Yes
Cable Length (Shielded)	1,000m
Cable Length (unshielded)	600m
The status indicates	Green LED each channel
Front connector	40-pin
Dimensions(W x H x D)(mm)	40×125×120
Order Number	UN 323-1BL00-0AA0
