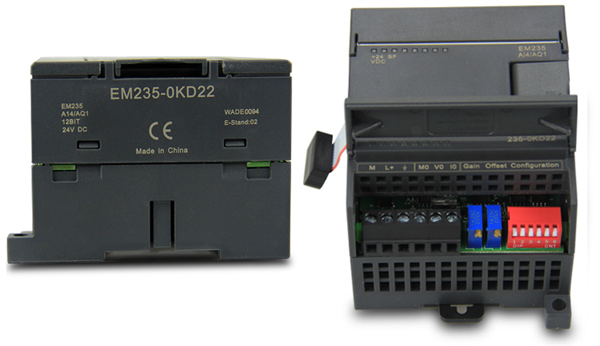

Model	EM235 4 inputs/1 outputs ×12bits
Product Description	4AI,1AO; 12 bits resolution voltage output;
	11 bits resolution current output
Input Feature
From bus current consumption	30mA
From L+ current consumption	60mA
Power loss	2W
Number of analog Input	4
Signal input type	Differential
Maximum input voltage	30V
Maximum input current	32mA
Voltange input range: Unipolar	0~50mV, 0~100mV,0~500mV,0~1V,0~5V,0~10V
current input range	0~20mA,
Resolution	12bits
Unipolar, full-scale range	-32,000~+32,000
Analog to digital conversion time	<250µs
Output Feature
Number of analog Input	1
Input voltage range	-10~+10V
Input current range	0~20mA
·for voltage outputs	ΩMin:5KΩ
·for current outputs	Max:0.5KΩ
·Displayable:voltage output	-32,000~+32,000
·Displayable:current output	0~32,000
Dimensions(W x H x D)(mm)	71.2×80×62
Order Number	EM235-0KD22-OXAO

--
