EM277 S7-200 DP Communication Module 6ES7 277-0AA22-0XA0 Compatible

Product Categories

Shenzhen Jetacon Technology Ltd

Contact Now

Name: EM277 S7200 DP Communication Module 6ES7 2770AA220XA0 Compatible
Brand: Jetacon
Price: 1 USD

Add to Cart

Completely compatible with siemens plc S7 200 software,CPU and Extension Module,

It can perfectly replace each other plc step 7-MICRO/WIN programming software supported.

Type Number Available :

6ES7 277-0AA22-0XA0
-

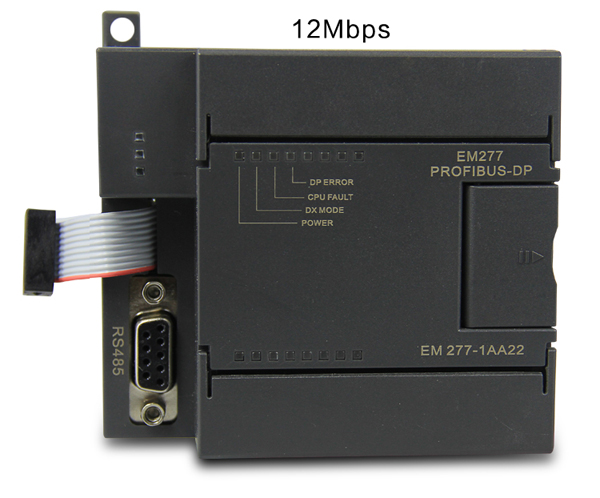

Model	EM277 PROFIBUS-DP Module
Description	Be used in distributed I/O system with PROFIBUS-DP interface
Description	Optical isolation, Stable,Supports S7-200 PLC ,(Such as 224,224 XP),S7-300 CPU with PROFIBUS-DP.
Module feature
Port	1
Port Type	RS-485
Protocol	PROFIBUS-DP
PROFIBUS-DP Speed	9.6, 19.2, 45.45, 93.75, 187.5 and 500Kbps
PROFIBUS-DP Speed	1.5, 3, 6 and 12Mbps
Net Ability

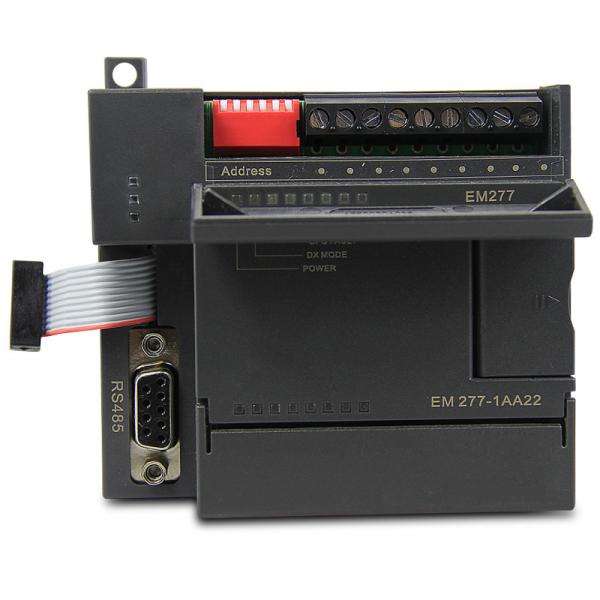

Sub-station address setting	0 to 99(setting by rotary swtich)
Max Sub-staion per Net section	32
Max Sub-station per Net	126, but just 99 EM277 Sub-station
Cable Length
Below 93.75kbps	1200 meters
187.5kbps	1000 meters
500kbps	400 meters
1-1.5Mbps	200 meters
3-12Mbps	100 meters
24V DC input power
Voltage range	20.4-28.8V DC
MAX. Current cosume (24VDC)	70mA
Isolation( Input power with Logic circuit)	500V
Power Supply consume
5V DC consume on BUS	150mA
Dimension (length x width x hight)	71 x 80 x 62
Order part No.	EM 277-0AA22-0XA0
