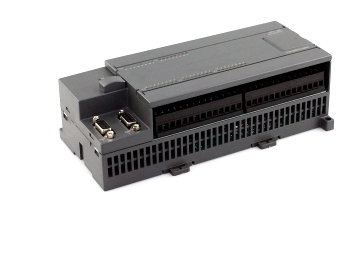

6ES7 216-2AD23-0XB0 SIMATIC S7-200 CPU 226 Compatible with PLC

Ask Lasest Price
Brand Name :	Jetacon
Certification :	UL, CE
Model Number :	6ES7 216-2AD23-0XB0
Price :	Get latest price
Delivery Time :	7-20 working days
Payment Terms :	T/T, L/C, Paypal, Payoneer
Supply Ability :	1KK poles monthly

Add to Cart

Product Details
Company Profile

6ES7 216-2AD23-0XB0 SIMATIC S7-200 CPU 226 Compatible with PLC

Completely compatible with plc S7 200 software,CPU and Extension Module,

It can perfectly replace each other,and plc step 7-MICRO/WIN programming software supported.

Central Processing Unit CPU	S7 200 PLC Part No.	plc model
8 input/6 output, Transistor	6ES7 212-1AB23-0XB0	CPU 222, DC PS, 8DI DC/6DO DC
8 input/6 output, Relay	6ES7 212-1BB23-0XB0	CPU 222, AC PS, 8DI DC/6DO RELAY
14 input/10 output, Transistor	6ES7 214-1AD23-0XB0	CPU 224, DC PS, 14DI DC/10DO DC
14 input/10 output, Relay	6ES7 214-1BD23-0XB0	CPU 224, AC PS, 14DI DC/10DO RELAY
14 input/10 output, Transistor; 2 point analog input,1 point analog output	6ES7 214-2AD23-0XB0	CPU224XP, DC PS, 14DI DC/10DO DC/2AI/1AO
14 input/10 output, Relay; 2 point analog input,1 point analog output	6ES7 214-2BD23-0XB0	CPU224XP,AC PS,14DI DC/10DO REL./2AI/1AO
24 input/16 output, Transistor	6ES7 216-2AD23-0XB0	CPU 226, DC PS, 24DI DC/16DO DC
24 input/16 output, Relay	6ES7 216-2BD23-0XB0	CPU 226, AC PS, 24DI DC/16DO RELAY

PLC CPU226
·Strong capabilities of high-speed computering and data

processing

·Program memory:72KB

·Boolean execution speed: 0.08µs per instruction

·Port:2 RS-485 ports, within1standard PPI port
Technical specifications
Model	CPU226 DC/DC/DC
Physical characteristic
Dimensions(W x H x D)(mm)	196×80×62
Power consume	11W
Memory

With run mode edit	36K bytes
Without run mode edit	72K bytes
Data memory	40960bytes
I/O
Local digital inputs	24 inputs
Local digital outputs	16 outputs
Digital I/O image size	256(128 inputs/128 outputs)
Analog I/O image size	64(32 inputs/32 outputs)
expansion modules allowed (Max)	7 modules
intelligent modules allowed (Max)	7 modules
Pulse catch inputs	24
High-speed counters	6 counters total

Two phase	4 at 20KHz
Pulse outputs	2 at 20KHz(DC outputs only)
Power
Input voltage	20.4 to 28.8 V DC
Input current	110mA while CPU only at 24 V DC
Input current	700mA while Max. load at 24 V DC
Inrush current	12A at 28.8 V DC
Isolation(field to logic)	Not isolated
Hold up time(loss of power)	1s at 24 V DC
Sensor voltage	L+ minus 5 V
Current limit	1.5A peak,thermal limit non-destructive

Isolation (sensor to logic)	Not isolated
CPU Digital Input Specifications
Built-in digital inputs	24
Input type	PNP/NPN
Rated voltage	24 V DC at 4mA
Max. continuous permissible voltage	30 V DC
Surge voltage	35 V DC for 0.5s
Logic “1” voltage range	15 to 30 V DC
Logic “0” voltage range	0 to 5 V DC
Input delay	Selectable (0.2 to12.8ms)
Isolation (field to logic)	Yes
Optical galvanic	500 V AC for 1minute
Isolation groups	Refer to Wiring diagram


HSC logic level 1(15 TO 26 V DC)	30K Hz (Single phase), 20K Hz (Tow phase),
Inputs on simultaneously	all
Shielded	500m normal inputs, 50m HSC inputs
unshielded	300m normal inputs
CPU Digital Output Specifications
Built-in outputs	16 outputs

Rated voltage	24 V DC
Voltage range	20.4 to 28.8 V DC
Surge current (Max.)	8A for 100ms
Logic “1” (Min)	20 V DC,at maximum current
Logic “0” (Max)	0.1 V DC with 10KΩ load
Isolation

Isolation groups	Refer to wiring diagram
Cable Length (Shielded)	500m
Cable Length (unshielded)	150m
Order number	6ES7 216-2AD23-0XB0
