UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V

    Buy cheap UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V from wholesalers

    Buy cheap UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V from wholesalers
    • Buy cheap UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V from wholesalers
    • Buy cheap UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V from wholesalers
    • Buy cheap UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V from wholesalers
    • Buy cheap UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V from wholesalers
    • Buy cheap UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V from wholesalers
    • Buy cheap UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V from wholesalers
    • Buy cheap UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V from wholesalers
    • Buy cheap UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V from wholesalers
    • Buy cheap UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V from wholesalers

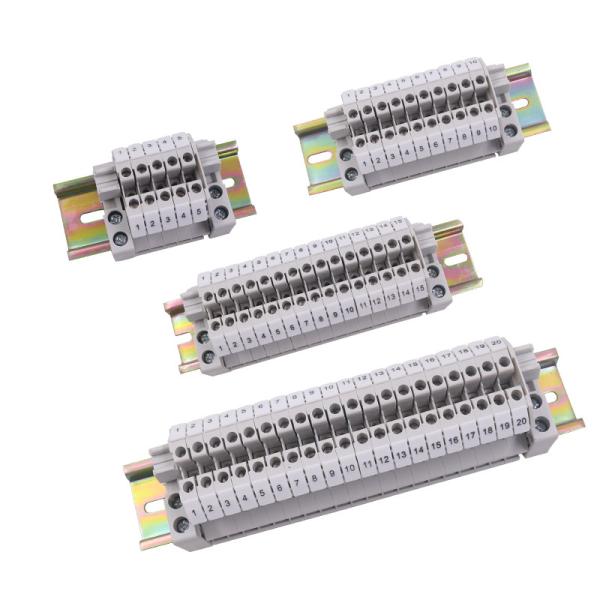

    UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V

    Ask Lasest Price
    Brand Name : Jetaconr
    Model Number : UK2.5B Modular
    Certification : UL, CE
    Price : US $2.99
    Payment Terms : T/T, L/C, Paypal, Payoneer
    Supply Ability : 1KK poles monthly
    Delivery Time : 7-20 working days
    • Product Details
    • Company Profile

    UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V

    -
    Model NumberUK 2.5B
    ColorGrey, Blue, other color can be customized
    Length / Height / Wide (mm)42.5mm / 41mm /6.2mm
    Connection methodScrew connection
    MaterialNylon PA66
    Rated Voltage/Current690V/32A
    Cross section, solid/soft Cable0.2-4 mm² / 0.2-2.5 mm²
    Conductor Size24-12 AWG
    Mounting TypeNS 35/7.5
    StandardIEC 60947-7-1
    LOGOCustomized logo are supported
    Packing Detail6.9g/pc, 50pcs/BOX, 3000pcs/ carton
    CertificationCE/RoHS/CQC/ISO 9001
    -
    -
    ModelHard Wire
    (mm2)    		Soft Wire
    (mm2)    		Rated
    Current
    (A)    		Rated
    Voltage
    (V)    		Dimension
    (mm)
    UK2.5B0.2-40.2-2.5326906.2 x 42.5 x 42
    UK3N0.2-40.2-2.5328006.2 x 42.5 x 42
    UK5N0.2-60.2-4418006.2 x 42.5 x 47
    UK6N0.2-100.2-2.5578006.2 x 42.5 x 47
    UK10N0.5-160.5-107680010.2 x 42.5 x 47
    UK16N2.5-254-1610180012.2 x 42.5 x 54
    UK35N0.75-500.75-35150100015.2 x 50.0 x 62
    UKH5016-5025-50150100020 x 70.5 x 83.5
    UKH9525-9535-95232100025 x 83 x 97.5
    UKH15035-15050-150309100031 x 100 x 118.5
    USLKG2.50.2-40.2-2.532/6.2 x 42.5 x 42
    USLKG30.2-40.2-2.532/6.2 x 42.5 x 47
    USLKG50.2-60.2-441/6.2 x 42.5 x 47
    USLKG6N0.2-100.2-657/8.2 x 42.5 x 47
    USLKG10N0.5-160.5-1076/10.2 x 42.5 x 47
    USLKG16N2.5254-16101/12.2 x 42.5 x 54
    USLKG35N0.75-500.75-35150/15.2 x 50.0 x 62
    USLKG5016-5025-50150/20 x 70.5 x 81.5
    Quality UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V for sale

    UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V
